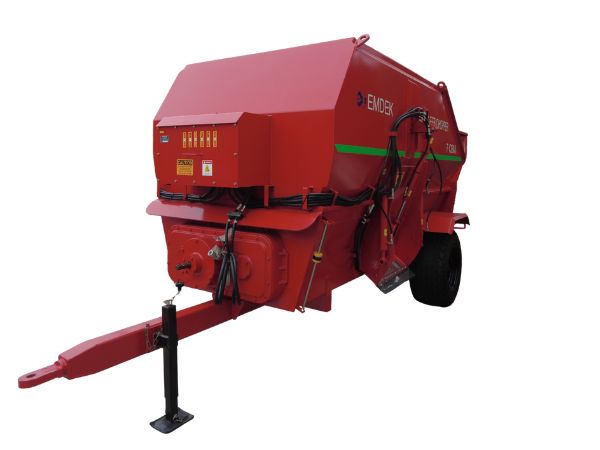

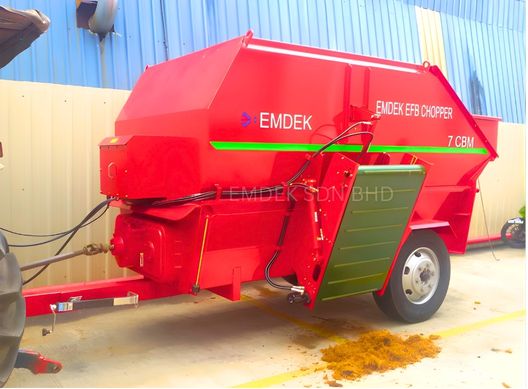

EMDEK EMPTY FRUIT BUNCH (EFB) CHOPPER

CAPACITY : 7 CBM

Gear box ratio : 1/20

Gear box input shaft : Spline - #28-6N (DIN-9611)

Auger speed : P.T.O 540 r.p.m x 1/20 = 27 R.P.M

Auger flight : 13t x O.D 440 x 325 Pitch

Auger tube : 200A x Sch’ 80(12.7t)

Cutting blade : Ø98 x 5t (Heat treated high tensile steel)

Right & Left side sheet construction : 4.5t (SS400)

Auger front & rear end sheet : 9t (SS400)

Auger bottom construction : 9t (SS400)

Liner sheet : 3t (Stainless)

TYPE : 2-Auger trailed tractor

Hydraulic belt conveyor discharge

Wire remote pendant control

Hydraulic P.T.O : Female quick coupler

(Male coupler required-SMS 23.66~23.74mm)

Hydraulic valve : Solenoid(D.C 12V)-Center close on block
